Lighter-duty crane systems still go down when the wrong end truck is under the bridge. Undersized wheels, poor alignment, and generic replacement parts wear out fast, turning a simple crane into a source of unplanned downtime and repeat repair costs. Top-running single-girder end trucks solve this by pairing a single, low-profile girder with a purpose-built truck frame that keeps the bridge tracking true across the runway, load after load. At Ace World Companies, we design and manufacture top-running single-girder end trucks engineered for the exact duty cycle, span, and rail size your crane system demands, backed by decades of American manufacturing experience.
An end truck is the unit consisting of the frame, wheels, bearings, and axles that supports the bridge girders and allows the bridge to travel along the runway. A top-running single-girder end truck carries a bridge girder along the top of the runway rail, with wheels riding directly on the running surface for stable, direct load transfer.
This is a meaningfully different configuration than an underrunning (or under running) end truck, where the trolley hangs below the girder and the wheels ride the underside of the rail flange. It is also different from a double-girder bridge crane end truck, which pairs two parallel girders with a hoist trolley that travels between them to achieve maximum capacity and headroom. A single-girder end truck uses one girder and one truck at each end of the bridge, which means less steel, a lighter overall bridge assembly, and a lower installed cost than a comparable double-girder system, without giving up the stability that comes with a true top-running end truck design.

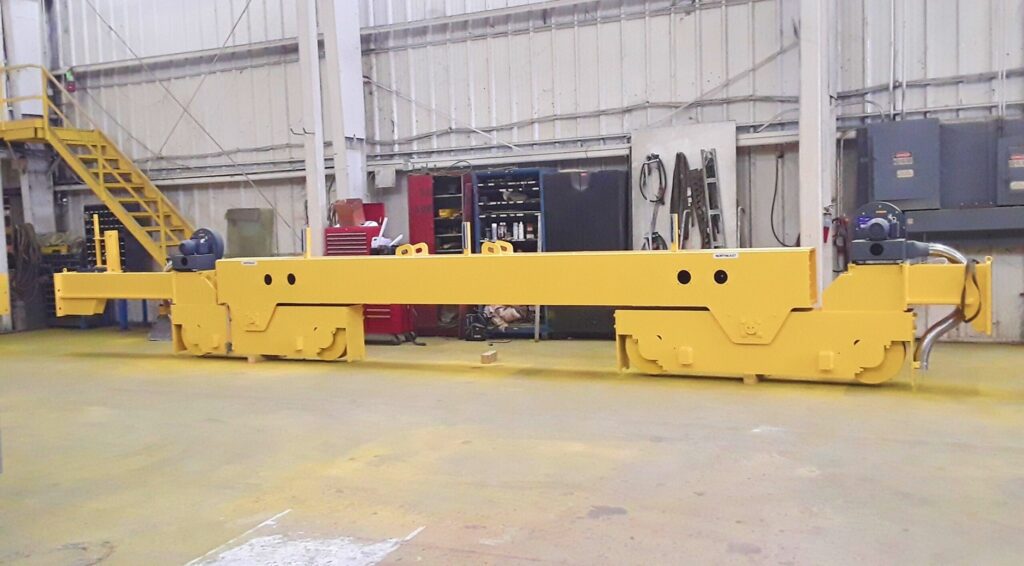

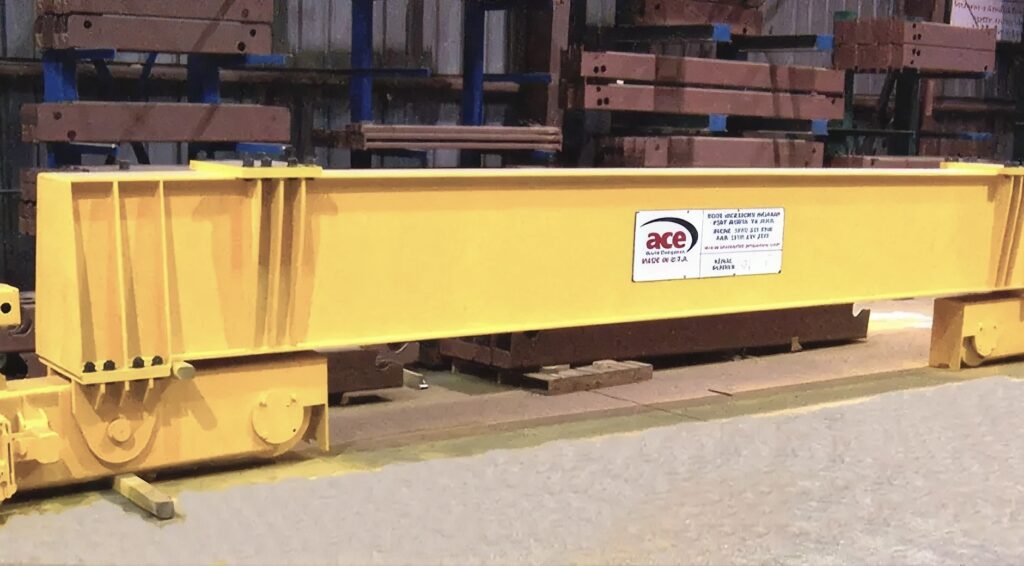

Each top-running single-girder end truck sits beneath one end of the bridge girder, with precision-bored axles that hold the wheels in exact alignment, so the bridge tracks straight along the runway rail rather than skewing or binding. Wheel flanges guide the truck along the rail while sealed bearings keep the assembly turning smoothly under repeated load cycles.

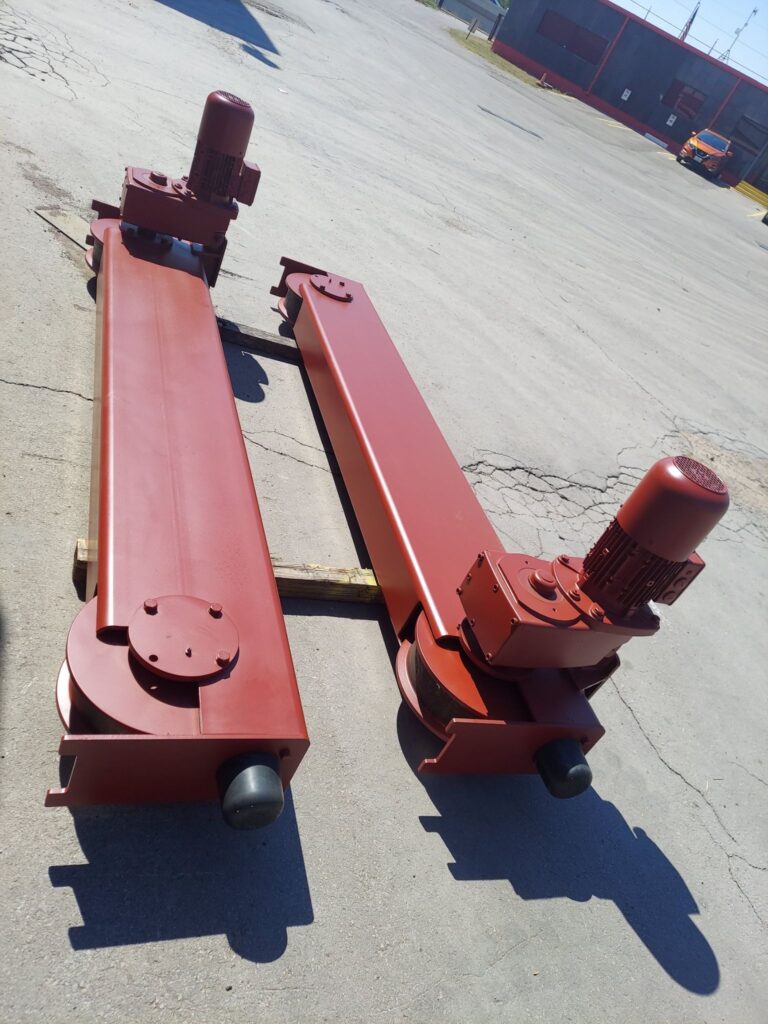

On a motorized bridge, one or more end trucks house the drive components that move the bridge along the runway; on manually positioned systems, the end trucks turn freely while still holding tight tolerances. Because the wheels ride on top of the rail rather than beneath it, a top-running end truck can generally handle higher loads and longer spans than an underrunning alternative built to the same frame size.
Top-running single-girder end trucks are the workhorse configuration for lighter-duty and moderate-capacity overhead crane systems and for shorter- to mid-length runway spans where a full double-girder bridge crane isn’t justified. Manufacturing plants, fabrication shops, automotive facilities, and steel service centers rely on this configuration because it delivers dependable, repeatable performance at a lower total cost than heavier-duty designs.
Key benefits include:
Selecting the right manufacturer for your top-running single-girder end trucks affects everything downstream: alignment, wheel life, maintenance costs, and how long the crane runs before it needs attention again. Ace World Companies has supplied American-made, custom-designed material handling equipment since 1987, and we manufacture the large majority of our end trucks and crane components in-house rather than outsourcing to a catalog supplier.
Full Lifecycle Support: Beyond new end trucks, our crane modernization services keep existing single-girder systems running at peak performance as loads and duty cycles change.
American-Made Quality: Every top-running single-girder end truck we build is manufactured in the USA to exacting tolerances.
Custom and Standard Options: Standard designs cover common capacities and spans, while our engineering team custom-builds end trucks for specialized runway, headroom, or duty-cycle requirements.
Engineering Depth: Precision line-bored axle bores, sealed lifetime-lubricated wheel bearings, and through-hardened wheels are built to exceed CMAA duty-class requirements, and our quality systems are certified to ISO 9001:2015.
It supports and guides the bridge of an overhead crane along the top of the runway rail, and is most commonly used on lighter-duty and moderate-capacity crane systems where a full double-girder bridge isn’t needed.
A top-running end truck rides on top of the runway rail, while an underrunning end truck hangs below the girder and rides the underside of the rail. Top-running designs generally support higher capacities and longer spans.
Single-girder end trucks are typically the better fit for lighter to moderate-duty applications and shorter to mid-length spans, offering lower installed cost and simpler maintenance than a double-girder system built for heavy or severe-duty service.
Yes. Alongside standard designs, Ace World Companies engineers custom top-running single-girder end trucks to match specific runway, headroom, and duty-cycle requirements.
Submit our online Request a Quote form or call 800-431-4223 to speak directly with an engineer about your application.
Ready to specify the right top-running single-girder end truck for your crane system? Our engineers will review your runway, span, and capacity requirements and recommend the right standard or custom solution.
Partner with Ace World Companies for top-running single-girder end trucks engineered to keep your overhead crane system running reliably, load after load.
