Cranes in Concrete Applications: Solutions for Heavy Lifting

Cranes provide essential material handling for the concrete industry. Concrete cranes must perform at a high level of service for weeks at a time when production is high. Concrete stripping cranes are a hard-duty cycle. These cranes can sometimes run non-stop for 2-3 days at or near continuous duty. They efficiently and safely move and place heavy materials with precision. Ace World Companies manufactures pre-engineered and custom cranes for concrete in our US facilities. Let our team know what your concrete handling needs are, and we will design a complete solution to meet them. We have equipment designed to meet a wide range of concrete industry applications. Whether you are inserting rebar into forms or lifting finished precast shapes out of forms, our industrial cranes and hoists are up to the task.

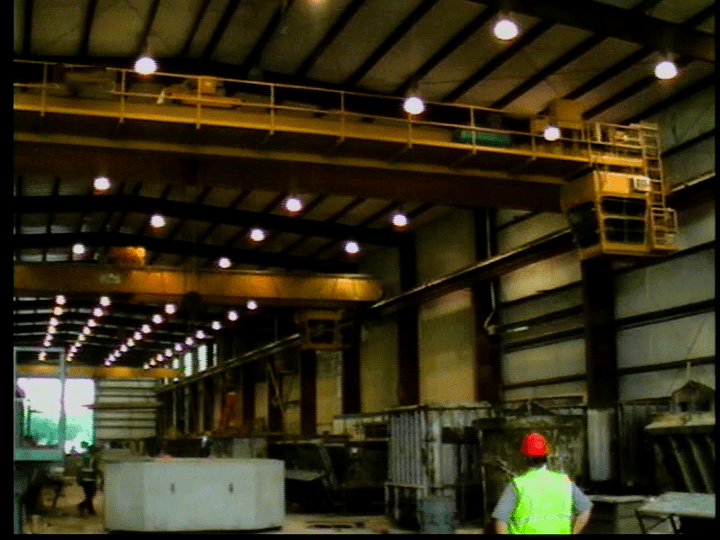

Overhead Cranes in Concrete

We manufacture single-girder and double-girder overhead bridge cranes for use in industrial settings. Overhead bridge cranes are ideal for concrete applications such as:

• Lifting and moving heavy concrete components, such as beams, panels, and walls
• Placing rebar and other additives into poured concrete
• Providing the precise vertical lift needed to remove precast components (Concrete Stripping) from their molds

With capacities of up to 500 tons and spans reaching 100 feet, Ace World Companies overhead cranes easily support heavy concrete materials.

Gantry Cranes in concrete

Our gantry cranes are excellent for outdoor use in concrete yards or other areas without sufficient overhead support. Concrete yards often utilize gantry cranes to move oversized molds and finished concrete sections. They are ideal for loading and outdoor storage areas.

Special Concrete Handling Solutions

We also offer fully customized concrete handling solutions, such as:

• Control Panels: Our Wisconsin panel facility produces control panels that are user-friendly and easy to set up.
• Load and line reactors are dedicated to preventing production downtime, which is essential for concrete production operations.
• Load load-sensing device limits the overload condition during the stripping process or during normal operation.
• Electric wire rope hoists: Our Fort Worth, TX, team can manufacture custom, low-headroom, and standard wire rope hoists to fit your concrete handling needs.
• Speeds: Hoist is operational at express speed at 40% load or less to double production at higher loads.
• Drum Grooving: Half-depth groove (or 1/2 of rope dia.) keeps cable in groove during traversing and hoisting operations. This gives the wire rope better support, increasing the life of the rope. We double the groove lands, adding life to the drum and its operation. Our 28:1 rope-to-drum ratio promotes extended rope and drum life.
• Spooling bar to monitor rope, preventing rope from disengaging from drum groove, only allowing hoist to go in “down” direction, allowing cable to seat back into the groove. This not only prevents costly wire rope damage and expensive cable drum destruction, but also prevents the cable from shearing, keeping the hoist in safe operating condition.
• Bearings 500,000+ bearing life. Each sheave allows lubrication through a port that displaces grease between bearings, forcing out old grease and revitalizing with new grease. This is essential in a concrete heavy dust environment. Sheaves are locked in place with a series of spacers and nuts. If side-pull occurs, this arrangement prevents costly sheave and load block damage. The only rotating part is the bearing turning on the inner race (no spacers or other wearable items due to metal-to-metal contact surface). 24/26:1 sheave to rope ratio with swinging equalizer, which gives equalizer 18:1 ratio, extending the rope life 2-3 times.

Whether you need an overhead crane, heavy-duty hoist, or control panel, the ACE World team is ready to help. We will work with you to design reliable and cost-effective solutions for your concrete operations based on anticipated weight, environmental conditions, and the scale of your project.

Full-Service Manufacturer of High-Performance Cranes

Ace World Companies provides full-service material handling solutions, including sales, modernization of cranes, and parts for concrete. Our engineers will work with you to design customized solutions that optimize your steel processing operations. Contact us today to get started!
